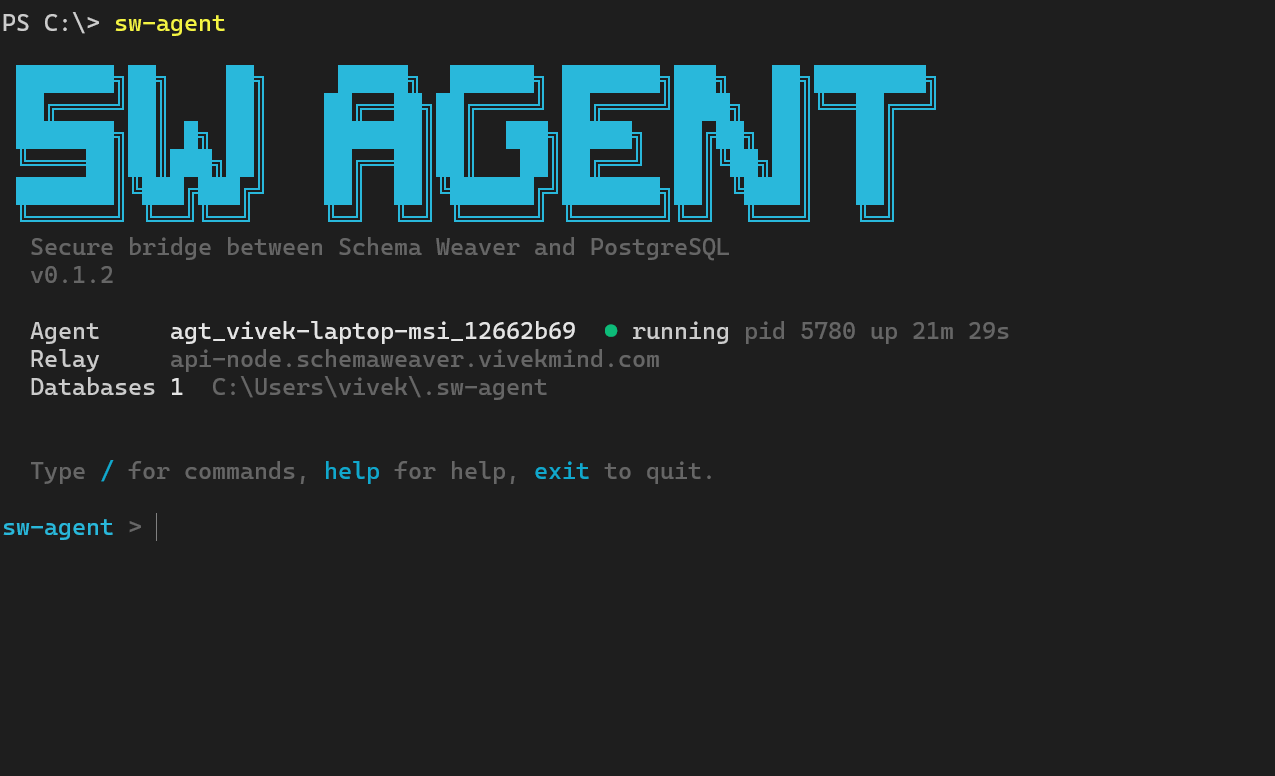

SW Agent: Bridge agent that connects Schema Weaver browser IDE to user's PostgreSQL databases. Runs near the DB, never exposes credentials, executes queries and migrations on demands

A lightweight daemon that bridges browser IDEs to PostgreSQL databases without exposing credentials to the cloud. This is the architecture behind npm i @vivekmind/sw-agent — the connector that lets Schema Weaver run real queries against your real database without your connection string ever leaving your machine.

Note: SW Agent is not an AI agent. The word "agent" here means a connector — a trust-boundary process that runs near your database and bridges browser sessions to PostgreSQL. This post covers the architecture, trust model, protocol, and security analysis of that connector.

1. The Problem We're Solving

Browser-based database IDEs face a fundamental trust problem: browsers cannot safely hold PostgreSQL credentials. A browser tab runs in a context the user doesn't fully control — browser extensions, developer tools, potential XSS vectors. Storing a database password in localStorage or sessionStorage is a non-starter for any production system.

Existing solutions fall into two camps, both problematic.

Cloud-hosted database tools (Prisma Studio Cloud, pgAdmin web mode, DBeaver Cloud) require you to either expose your PostgreSQL instance to the internet or give your credentials to a third-party service. For teams with databases in VPC private subnets, this is a non-starter. Even for cloud databases like Supabase or Neon, many organizations have policies against credential sharing with third parties.

Self-hosted web interfaces (pgAdmin server mode) require you to run a server with credentials and expose it via HTTP. This creates operational complexity — you need TLS certificates, authentication systems, and network access. It also means the server has credentials that could be exfiltrated.

SW Agent takes a different approach: a small daemon that runs near the database, holds credentials locally, and talks to the browser through a cloud relay. The agent makes outbound-only connections, so it works behind NAT, corporate firewalls, and VPC security groups without inbound ports. Credentials never leave the machine where the agent runs.

This design matters for three scenarios:

1. VPC private subnets: Your RDS instance lives in a private subnet. The agent runs on an EC2 instance inside the same VPC, and the browser connects through the cloud relay. No VPN, no bastion host SSH tunneling.
2. Cloud databases (Supabase, Neon, AWS): The agent runs on your laptop. You're not giving your connection string to our cloud — you're giving it to a process running on your own machine.
3. Team collaboration: One agent token is shared by a team, but every action is logged with the acting user's ID and role. The audit log creates accountability even though the database only sees one PostgreSQL user.

2. High-Level Architecture

┌─────────────────┐       WSS        ┌─────────────────┐       WSS       ┌─────────────────┐
│    Browser      │◄────────────────►│   Cloud Relay   │◄───────────────►│    SW Agent     │
│  (React SPA)    │   www.worker-    │   (Node.js)     │                 │   (TypeScript)  │
│                 │     pod.io        │                 │                 │                 │
└─────────────────┘                  └─────────────────┘                 └────────┬────────┘
                                                                               │
                                                                               │ pg protocol
                                                                               │
                                                                      ┌────────▼────────┐
                                                                      │   PostgreSQL    │
                                                                      │   (Your DB)     │
                                                                      └─────────────────┘

┌─────────────────┐
│   Audit Log     │  ◄── Written by agent, local disk, hash-chained
│ (JSONL + SHA256)│
└─────────────────┘

Why each hop exists:

• Browser → Cloud Relay: The browser cannot connect directly to the agent (the agent has no public IP). The relay provides a well-known endpoint that browsers can reach. Crucially, the relay does NOT terminate TLS for PostgreSQL traffic — it just forwards encrypted WebSocket frames.
• Cloud Relay → SW Agent: The agent initiates an outbound WebSocket connection to the relay. This is the key to NAT/firewall traversal. The agent never listens on any port.
• SW Agent → PostgreSQL: Standard node-postgres (pg) connection pool. The agent holds the password in memory (read from an environment variable at startup) and creates connections to PostgreSQL using the pg library.

The audit log is a local JSONL file with a SHA-256 hash chain. Every action — query, migration, introspection, cancellation — is logged with the user's ID, role, decision (allow/deny), and outcome. Because one agent token is shared by a team, the audit log provides accountability.

3. The Trust Model

Understanding what is trusted versus untrusted is critical to evaluating any security architecture.

What is Trusted

The Agent is fully trusted. It holds database credentials in memory (sourced from OS environment variables), enforces permission policies, and writes the audit log. If an attacker compromises the agent process, they have full database access — but they would need root/admin access to the machine first, at which point you have bigger problems.

PostgreSQL is trusted but dumb. PG only knows the agent's PostgreSQL user — it doesn't know which human initiated the query. This is why the audit log exists: to map database actions back to human users.

What is Semi-Trusted

The Cloud Relay is semi-trusted. It can see:

• Encrypted WebSocket frames flowing between browser and agent
• Agent IDs and browser session IDs (for routing)
• Message timestamps and sizes

It cannot see:

• PostgreSQL passwords (never transmitted through relay)
• SQL query contents (encrypted inside WebSocket frames, terminated by agent)
• Query results (encrypted, terminated by agent)

The relay could deny service, route messages incorrectly, or log metadata. It could not directly query your database. This is analogous to how a VPN concentrator is semi-trusted: it can see packet headers and timing, but not payload if you use end-to-end encryption.

What is Untrusted

The Browser is untrusted. Any code running in a browser tab could be compromised — XSS, malicious browser extension, or a user who just wants to bypass restrictions. The permission system assumes the browser might send any SQL, claim any intent, and request any action.

Anti-spoofing: When the browser sends a query with intent: 'read', the agent re-parses the SQL using its own classifier (src/execution/statement-classifier.ts) and rejects if the SQL is actually a DELETE or DROP. The browser's claimed intent is advisory only.

The Credentials-Never-Leave Principle

The phrase "credentials never leave the machine" is precise: the PostgreSQL password is read from an environment variable (password_env in databases.config.json), stored in the agent process's memory, and used only to authenticate connections to PostgreSQL. It is never:

• Written to disk
• Logged
• Transmitted over the network (except directly to PostgreSQL during connection negotiation)
• Visible to the cloud relay
• Visible to the browser

What exits the machine are query results, encrypted inside WebSocket frames, addressed to the cloud relay, destined for a specific browser session.

4. Network Topology

SW Agent supports three deployment tiers, each with different network requirements.

Tier A: Local Development

┌─────────────┐      WSS       ┌─────────────┐
│   Browser   │◄──────────────►│ Cloud Relay │
│  (Chrome)   │                 └─────────────┘
└─────────────┘                       ▲
                                      │ WSS (outbound)
                                      │
┌─────────────┐                       │
│  SW Agent   │───────────────────────┘
│  (laptop)   │─────── pg ────────►
└─────────────┘
      │
      ▼ localhost:5432
┌─────────────┐
│  PostgreSQL │
│  (Docker)   │
└─────────────┘

Ports: Agent makes outbound WSS to port 443. PostgreSQL listens on localhost:5432.

Use case: Developer working with a local Postgres container. The browser connects through the public relay, but data never leaves the laptop.

Tier B: Cloud Database

┌─────────────┐      WSS       ┌─────────────┐
│   Browser   │◄──────────────►│ Cloud Relay │
│  (anywhere) │                 └─────────────┘
└─────────────┘                       ▲
                                      │ WSS (outbound)
                                      │
┌─────────────┐                       │
│  SW Agent   │───────────────────────┘
│  (laptop)   │─────── pg ────────►
└─────────────┘
                              ┌─────────────┐
                              │  Supabase   │
                              │  (AWS RDS)  │
                              └─────────────┘

Ports: Agent makes outbound WSS to port 443, outbound PostgreSQL connection to your Supabase/Neon host on port 5432.

Firewall requirements: Allow outbound HTTPS (443) and PostgreSQL (5432).

Use case: Developer working on a staging database hosted on Supabase. Credentials stay on the laptop.

Tier C: VPC Private Subnet

┌─────────────┐      WSS       ┌─────────────┐
│   Browser   │◄──────────────►│ Cloud Relay │
│  (anywhere) │                 └─────────────┘
└─────────────┘                       ▲
                                      │ WSS (outbound via NAT)
                                      │
┌─────────────────────────────────────┴───────────────────────┐
│  VPC (private subnet)                                       │
│                                                             │
│  ┌─────────────┐                                            │
│  │  SW Agent   │─────── pg ────────►                       │
│  │  (EC2)      │                                            │
│  └─────────────┘                                            │
│                         ┌─────────────┐                     │
│                         │  RDS PG     │                     │
│                         │  (private)  │                     │
│                         └─────────────┘                     │
└─────────────────────────────────────────────────────────────┘

Ports: Agent makes outbound WSS (via NAT gateway or VPC endpoint) to port 443. PostgreSQL connection stays within VPC.

Security groups:

• Agent EC2: outbound 443 to internet, outbound 5432 to RDS security group. No inbound rules required.
• RDS: inbound 5432 from agent security group only.

Use case: Production database access from browser. The agent runs inside the VPC, close to the database. No VPN required for developers.

Outbound-Only Architecture

The agent never opens a listening socket. All connections are outbound:

• SSE wake channel: Outbound HTTPS GET to https://<relay>/agent/wake
• WSS data channel: Outbound WebSocket to wss://<relay>/agent/data

This means:

• Works behind NAT (home routers, corporate networks)
• Works behind stateful firewalls that allow outbound HTTPS
• No port forwarding or DNAT configuration
• No public IP required on the agent machine

5. The Two-Channel Protocol Design

SW Agent uses two separate channels: a SSE wake channel and a WSS data channel. This design was inspired by WhatsApp's architecture, which famously uses a long-lived TCP connection for presence + short-lived connections for message delivery.

Why Two Channels?

Problem with one persistent WSS: If you keep a WebSocket open for hours, it looks like an idle TCP connection. Middleboxes (NATs, corporate proxies, mobile carriers) may terminate idle connections after 5-30 minutes. Heartbeats help, but they consume battery on mobile and bandwidth everywhere.

WhatsApp's insight: Keep an ultra-lightweight channel open just to say "hey, you have a message." When there's work to do, open a data connection, do the work, close it.

SSE Wake Channel

GET /agent/wake HTTP/1.1
Authorization: Bearer swagt_7Kk2mP9xQr4T...
X-Agent-Id: agt_laptop_a1b2c3d4
Accept: text/event-stream

HTTP/1.1 200 OK
Content-Type: text/event-stream
Cache-Control: no-cache

event: wake
data: {"wake_id":"w_123","reason":"browser_request","browser_session_id":"bs_xyz",...}

Characteristics:

• Server-Sent Events (SSE): HTTP GET, unidirectional server push
• Always alive: reconnects immediately on disconnect with exponential backoff
• Ultra-light: ~100 bytes per event, ~5-minute keepalive interval
• No client payload: browser can't send queries over this channel

Why SSE instead of WSS for wake?

• SSE is plain HTTP, easier to debug with curl
• Works in environments that block WebSocket upgrades but allow long-polling
• Less overhead than WebSocket handshake for a channel that rarely carries data

Keepalive: Every 5 minutes (DEFAULTS.WAKE_KEEPALIVE_MS = 300_000), the relay sends a ping wake event. If the agent hasn't received any event in 5 minutes, it triggers a reconnect (src/channels/wake-channel.ts:80-84).

WSS Data Channel

WebSocket wss://relay.io/agent/data?token=...&agent_id=...&session=...

Frames (binary):
┌─────────────────────────────────────────┐
│ {"v":1,"id":"req_123","type":"query",...} │
└─────────────────────────────────────────┘

Characteristics:

• WebSocket (WSS): bidirectional, binary frames
• On-demand: opened only when the wake channel signals browser_request
• 60-second idle timeout: closes after 60s with no activity (DEFAULTS.IDLE_WSS_TIMEOUT_MS)
• Carries all request/response traffic: query, stream_query, migration_run, introspect, cancel

Why on-demand instead of always-alive?

If 10,000 agents are connected and each keeps a WSS socket open, that's 10,000 file descriptors and TCP buffers on the relay. Most agents are idle 99% of the time. By closing the data channel after 60s idle, the relay scales to many more agents.

Reconnection Strategy

SSE Wake Channel (src/channels/reconnect.ts):

• Exponential backoff: 1s, 2s, 4s, 8s, 16s, 32s, 60s, 60s, ...
• Capped at 60s to prevent long waits
• Jitter ±20% to prevent thundering herd after relay restart
• On successful connect, reset backoff counter

WSS Data Channel:

• No automatic reconnect: closed after idle timeout
• Next browser request triggers a new wake event → new data channel

What Happens When Network Drops Mid-Query?

1. Agent is streaming a large result set. Network goes down.
2. WSS data channel closes (close event with code 1006 = network error)
3. Agent's DataChannel state transitions to closed
4. Agent's AgentSession tracks the in-flight request (inFlightRequests map)
5. Browser reconnects (new wake event with request_id field)
6. Agent sends resume_request event to browser
7. Browser re-sends the query with the same request_id

If the browser doesn't reconnect within 5 minutes (DEFAULTS.ORPHAN_REQUEST_TIMEOUT_MS), the agent cancels the query and releases the connection.

6. Message Protocol

Every message between browser, relay, and agent uses the same envelope format.

Single Envelope Format

{
  "v": 1,
  "id": "uuid-v4-here",
  "type": "query",
  "project": "myapp",
  "user": {
    "id": "user_123",
    "role": "developer"
  },
  "db_alias": "prod",
  "ts": 1706140800000,
  "payload": {
    "sql": "SELECT * FROM users LIMIT 10",
    "intent": "read",
    "timeout_ms": 30000
  }
}

Fields:

• v: Protocol version (currently 1)
• id: UUID v4, generated by sender. Used for request/response correlation and cancellation.
• type: One of 11 message types (see below)
• project: Project name, must match project_name in databases.config.json
• user: Acting user ID and role. The browser sets this; the agent trusts the relay to have authenticated the user.
• db_alias: Which database alias within the project
• ts: Sender's epoch milliseconds, for audit and ordering
• payload: Type-specific payload

11 Message Types

Request/Response Correlation

Every request has a unique id field. The agent's response includes that id in the payload.request_id field:

// Request
{"v":1,"id":"req_abc",...,"type":"query","payload":{...}}

// Response
{"v":1,"id":"resp_xyz",...,"type":"response","payload":{"request_id":"req_abc","ok":true,"data":{...}}}

This allows the browser to match responses to requests, even when multiple requests are in-flight.

Error Catalog: 35+ Codes

Defined in src/protocol/errors.ts. Key categories:

Fatal errors (tear down connection):

• invalid_message, unknown_message_type, protocol_version_mismatch
• auth_failed, token_expired
• config_invalid, config_not_found

Retryable errors:

• db_unavailable, db_pool_exhausted
• query_timeout
• rate_limited, channel_closed

Non-retryable:

• permission_denied, role_insufficient
• approval_timeout, approval_denied
• migration_statement_failed

Each error has fatal: boolean and retryable: boolean flags, plus a recovery_hint string for the browser UI.

Full Query Round-Trip Example

1. Browser sends query request
   → {"v":1,"id":"req_1","type":"query","project":"myapp","user":{"id":"alice","role":"admin"},
      "db_alias":"prod","ts":1706140800000,"payload":{"sql":"SELECT 1","intent":"read"}}

2. Relay forwards to agent (adds routing metadata internally)

3. Agent receives, validates envelope, validates payload
   → PermissionChecker.check(): role=admin, permission_level=full → allowed
   → Dispatcher.handle() → QueryRunner.runOneShot()

4. Agent executes against PostgreSQL
   → PoolManager.acquire() → pg Pool connection
   → client.query("SELECT 1")
   → Result: {rows: [["1"]], rowCount: 1}

5. Agent sends response
   ← {"v":1,"id":"resp_2","type":"response","project":"myapp","user":{"id":"alice","role":"admin"},
      "db_alias":"prod","ts":1706140800100,
      "payload":{"request_id":"req_1","ok":true,"data":{"columns":[...],"rows":[["1"]],...},"ms":100}}

6. Relay forwards response to browser

7. Permission System

SW Agent enforces permissions on two dimensions: project permission level and user role.

Four Permission Levels

Permission level is set in databases.config.json per database entry (via permission_override) or defaults from sw-agent.config.json (default_permission).

Four User Roles

Role-to-capability mapping defined in src/permissions/role-policy.ts.

Why Two Dimensions?

• Permission level answers: "What is this database allowed to do?" (set by ops/admin, stored in config)
• Role answers: "Who is the user?" (set by team admin in browser, passed with every request)

A data_reader role with full permission on a read replica makes sense. An admin role with read_only permission on a production database makes sense.

Auto-Upgrade Flow

1. Browser sends plan_register event with SQL statements:

   {"type":"event","payload":{"kind":"plan_register","data":{"statements":["CREATE TABLE ...","CREATE INDEX ..."],...}}}

2. Agent registers plan in PlanRegistry (src/permissions/plan-registry.ts)
   • Generates plan_id
   • Computes SHA-256 hash of statements
   • Stores with 5-minute TTL
3. Browser sends migration_run with plan_id:

   {"type":"migration_run","payload":{"plan_id":"plan_xyz","statements":[...],...}}

4. Agent's AutoUpgradeChecker validates:
   • Plan exists and not expired
   • Statement hash matches
   • Request is migration_run message type
   • Role allows migration_run
5. If valid, migration proceeds without prompting user.

Manual Approval Flow

When permission_level=manual and the SQL is not a read:

1. Agent pauses request processing
2. Agent sends approval_required event to browser:

   {"type":"event","payload":{"kind":"approval_required","data":{
     "request_id":"req_123",
     "sql":"DROP TABLE users;",
     "sql_preview":"DROP TABLE users;",
     "intent":"ddl",
     "expires_at":1706140860000
   }}}

3. Browser shows modal to user
4. User clicks Approve or Deny
5. Browser sends approval_response event:

   {"type":"event","payload":{"kind":"approval_response","data":{
     "request_id":"req_123",
     "approved":true,
     "approved_by":"alice"
   }}}

6. Agent's ManualApprovalHandler resolves the pending request
7. If approved, agent proceeds with execution

Timeout: If no response within 60s (DEFAULTS.APPROVAL_TIMEOUT_MS), the request is rejected with MANUAL_APPROVAL_TIMEOUT.

Anti-Spoofing

Browser sends intent field claiming the statement type. Agent does not trust this:

// src/permissions/checker.ts:38-47
const actualClassification = classifyStatement(req.sql);
if (req.intent !== actualClassification.type && req.intent !== 'migration') {
  return {
    allowed: false,
    reason: `Intent mismatch: browser claimed '${req.intent}' but SQL is '${actualClassification.type}'`,
    code: 'intent_mismatch',
  };
}

A browser claiming intent: 'read' while sending DROP TABLE users; is rejected.

8. Execution Engine Internals

PoolManager

src/execution/pool.ts

• Lazy pool creation: Pool is created on first acquire() call for a db_alias
• One pool per project: Each db_alias gets its own pg.Pool
• Default 5 connections: Configurable via maxPoolSize option
• Password from env: Reads password from process.env[password_env] at connection time, not at config load time
• SSL modes: Supports disable, require, verify-ca, verify-full

// Pool creation (src/execution/pool.ts:65-76)
const pool = new Pool({
  host: dbEntry.host,
  port: dbEntry.port,
  database: dbEntry.database,
  user: dbEntry.user,
  password: passwordFromEnv,  // Read from process.env at connect time
  ssl: sslConfig,
  max: this.opts.maxPoolSize ?? 5,
  idleTimeoutMillis: 30_000,
  connectionTimeoutMillis: 5_000,
  statement_timeout: 30_000,
});

Connection lifecycle:

1. acquire() → pool.connect() → get PoolClient + pid
2. Track in-flight request with pid for cancellation
3. Execute query
4. release() back to pool (not end())
5. After 60s idle (DEFAULTS.IDLE_WSS_TIMEOUT_MS), pool closes

QueryRunner

src/execution/query-runner.ts

One-shot query (runOneShot):

1. Acquire connection, get PID
2. Set statement_timeout (default 30s or payload override)
3. Execute query with rowMode: 'array' (arrays, not objects — smaller payload)
4. Apply cell truncation: cells > 1MB are replaced with {__truncated: true, preview: "..."}
5. Check row limit: throw QueryTooLargeError if > 10,000 rows
6. Release connection

Streaming query (runStreaming):

1. Acquire connection, get PID
2. BEGIN, DECLARE cursor_name CURSOR FOR <sql>
3. Loop: FETCH 50 FROM cursor_name
4. Chunking rules: send when 100 rows OR 64KB OR 100ms
5. Hard cap: throw StreamTooLargeError if > 1,000,000 rows
6. On completion: CLOSE cursor_name, COMMIT

// Chunking logic (src/execution/query-runner.ts:348-357)
const rowsFull = accumulatedRows.length >= DEFAULTS.STREAM_CHUNK_ROWS;  // 100
const bytesFull = accumulatedBytes >= DEFAULTS.STREAM_CHUNK_BYTES;      // 64KB
const timeFull = Date.now() - lastChunkTime >= DEFAULTS.STREAM_CHUNK_MS; // 100ms

if (rowsFull || bytesFull || timeFull) {
  sendChunk();
  accumulatedRows = [];
  accumulatedBytes = 0;
  lastChunkTime = Date.now();
}

MigrationRunner

src/execution/migration-runner.ts

Single-transaction strategy (single_tx):

1. BEGIN
2. Execute each statement sequentially
3. On error: ROLLBACK, mark all previous statements as rolled_back
4. On success: COMMIT

Per-statement strategy (per_statement):

1. Execute each statement in its own transaction (implicit autocommit)
2. On error: mark that statement as failed, continue to next
3. Result status: partial if any failed, committed if all succeeded

Auto-switch: If single_tx is requested but the migration contains non-transactional statements, automatically switch to per_statement:

// src/execution/migration-runner.ts:182-208
const nonTxCheck = detectNonTransactional(payload.statements);
if (nonTxCheck.has_non_transactional && strategy === 'single_tx') {
  strategy = 'per_statement';
  strategyChangedFrom = 'single_tx';
  // Send warning event to browser
}

Non-transactional statements (detected by src/execution/non-tx-detector.ts):

• CREATE INDEX CONCURRENTLY
• CREATE DATABASE, DROP DATABASE
• CREATE TABLESPACE, DROP TABLESPACE
• REINDEX
• VACUUM, ANALYZE, CLUSTER

Advisory locks: Prevent concurrent migrations on the same project:

// src/execution/migration-runner.ts:171-179
const lockRes = await client.query(
  'SELECT pg_try_advisory_lock($1, $2) AS locked',
  [key1, key2]  // MD5 hash of project name
);
if (!locked) {
  throw new MigrationInProgressError('Database migration is currently in progress for this project.');
}

Cancellation

src/execution/canceller.ts

Why a separate connection? You cannot cancel a query from the same connection — PostgreSQL's pg_cancel_backend(pid) requires a different connection.

Cancellation flow:

1. Browser sends cancel message with target_id = request ID to cancel
2. Agent looks up InFlightRequest by target_id
3. Agent calls req.abort.abort() to signal the query runner
4. Agent opens a new connection to the same database
5. Agent runs SELECT pg_cancel_backend($1) with the query's PID
6. Original query throws QueryCancelledError with PG error code 57014

// src/execution/canceller.ts:83-94
const cancelRes = await client.query(
  'SELECT pg_cancel_backend($1) AS cancelled',
  [req.pid]
);
const wasCancelled = cancelRes.rows[0]?.cancelled === true;

Introspector

src/execution/introspection.ts

Queries information_schema views to build a complete schema snapshot:

1. PostgreSQL version (SELECT version())
2. Schemas (information_schema.schemata)
3. Tables and views (information_schema.tables)
4. Columns (information_schema.columns)
5. Primary keys and unique constraints (information_schema.table_constraints)
6. Foreign keys (information_schema.referential_constraints)
7. Indexes (pg_catalog.pg_indexes)
8. Check constraints (information_schema.check_constraints)
9. Triggers (information_schema.triggers)
10. Extensions (pg_catalog.pg_extension)
11. Partitions (pg_catalog.pg_inherits)

Result is a SchemaSnapshot object matching the shape expected by the frontend's ER diagram renderer.

9. Audit Log — The Hash Chain

Why Audit Matters

When one agent token is shared by a team, PostgreSQL only sees one user. The audit log provides attribution: who did what, when, and whether it was allowed.

AuditEvent Schema

src/audit/types.ts

interface AuditEvent {
  id: string;           // UUID
  ts: string;           // ISO 8601
  agent_id: string;     // Which agent
  project: string;      // Project name
  user_id: string;      // Who initiated
  role: Role;           // Their role
  action: AuditAction;  // query, migration_run, cancel, etc.
  decision: AuditDecision;  // allow, deny, pending, approved, rejected, expired
  outcome: AuditOutcome;    // success, error, cancelled, n/a
  permission_level: PermissionLevel;
  statement_fingerprint?: string;  // SHA-256 (first 16 hex chars)
  statement_preview?: string;      // First 200 chars
  denial_reason?: string;
  error_code?: string;
  duration_ms?: number;
  rows_affected?: number;
  rows_returned?: number;
  migration_plan_id?: string;
  prev_hash: string;    // Hash of previous event
  hash: string;         // Hash of this event
}

SHA-256 Hash Chain

src/audit/chain.ts

Construction:

1. Canonical JSON serialization (sorted keys, no whitespace)
2. Concatenate canonical_json + prev_hash
3. Compute SHA-256

// src/audit/chain.ts:4-8
export function computeHash(event: Omit<AuditEvent, 'hash'>): string {
  const canonical = canonicalStringify(event);
  const input = canonical + event.prev_hash;
  return crypto.createHash('sha256').update(input, 'utf8').digest('hex');
}

First event: prev_hash is 0 repeated 64 times.

Tamper detection: verifyChain(events) walks the chain and checks:

1. Each prev_hash matches the previous event's hash
2. Each hash matches the computed hash of prev_hash + canonical_json

// src/audit/chain.ts:27-54
export function verifyChain(events: AuditEvent[]): { intact: boolean; brokenAt?: number } {
  for (let i = 0; i < events.length; i++) {
    if (i === 0) {
      if (events[i].prev_hash !== '0'.repeat(64)) return { intact: false, brokenAt: 0 };
    } else {
      if (events[i].prev_hash !== events[i - 1].hash) return { intact: false, brokenAt: i };
    }
    const expectedHash = computeHash(eventWithoutHash);
    if (events[i].hash !== expectedHash) return { intact: false, brokenAt: i };
  }
  return { intact: true };
}

Local Writer

src/audit/local-writer.ts

• File: ~/.sw-agent/audit/audit.jsonl (one JSON object per line)
• Rotation: 10MB file size, 10 archive files
• Sync: fsync() on every write
• Permissions: 0o600 (owner read/write only)

Buffer Overflow Handling

If the audit queue exceeds bufferSize (default 1024):

1. Agent drops all queued events
2. Agent writes a synthetic audit_overflow event:

   {"action":"audit_overflow","decision":"deny","statement_preview":"N events dropped due to audit buffer overflow",...}

This ensures the chain remains verifiable even when events are lost — the audit_overflow event creates a visible gap.

Cloud Writer (Stub)

src/audit/cloud-writer.ts

Interface defined, implementation deferred:

async log(_event: AuditEvent): Promise<CloudWriterResult> {
  if (!this.config.enabled) return { status: 'disabled' };
  if (!this.config.url) return { status: 'not_configured' };
  return { status: 'not_implemented' };
}

Future work: stream audit events to cloud SIEM (Splunk, Datadog, etc.).

10. The Daemon Lifecycle

PID File + Status File

No HTTP endpoint, no IPC socket. The daemon communicates state through files:

• PID file (~/.sw-agent/sw-agent.pid): {pid, started_at, version}
• Status file (~/.sw-agent/agent.status.json): heartbeat, channel states, stats

Heartbeat: Every 30 seconds, the daemon writes a new status file. A heartbeat > 90 seconds old indicates a stale/crashed daemon.

Graceful Shutdown

src/cli/daemon/shutdown.ts

Order matters:

1. Refuse new requests: Mark shuttingDown = true
2. Wait for in-flight: Up to 30 seconds for pending queries/migrations
3. Flush audit: auditSink.flush() — wait for queue to drain
4. Close pools: poolManager.closeAll() — cleanly close PostgreSQL connections
5. Close channels: session.stop() — close WSS and SSE
6. Delete PID file: Remove sw-agent.pid
7. Exit: 0 for clean shutdown, 1 for timeout/forced

// src/cli/daemon/shutdown.ts:26-67
async shutdown(timeoutMs = 30_000): Promise<'clean' | 'timeout'> {
  this.shuttingDown = true;
  const entries = Array.from(this.resources.entries());
  const startTime = Date.now();

  for (const [name, cleanup] of entries) {
    const remaining = Math.max(0, timeoutMs - (Date.now() - startTime));
    const result = await Promise.race([cleanup(), timeout(remaining)]);
    if (result === 'timeout') {
      console.warn(`Resource '${name}' timed out after ${remaining}ms`);
    }
  }
  return hasTimeout ? 'timeout' : 'clean';
}

Doctor: Pre-Flight Checks

src/cli/doctor/checks.ts

Nine checks in cheap-to-expensive order:

1. SW Agent directory exists: ~/.sw-agent/
2. Machine config valid: sw-agent.config.json parseable, required fields present
3. Token format: swagt_ prefix + 32 char base62 body
4. Databases config valid: databases.config.json parseable
5. Databases reachable: Connection test (skipped by default)
6. Audit directory writable: Can we create audit/ and write a file?
7. Disk space: Check available space (platform-dependent)
8. Node version: >= 18.0.0
9. PID file: Check for stale PID file from previous crash

$ sw-agent doctor
✓ SW Agent directory exists
✓ Machine config valid (Agent ID: agt_laptop_a1b2c3d4)
✓ Token format
✓ Databases config valid (2 databases configured)
≻ Databases reachable (skipped)
✓ Audit directory writable
✓ Disk space
✓ Node version (v20.10.0)
✓ PID file (no PID file, agent not running)

11. The Public SDK

Subpath Exports

The package exports two entry points:

// package.json exports
{
  "exports": {
    ".": {
      "types": "./dist/types/index.d.ts",
      "import": "./dist/esm/index.js",
      "require": "./dist/cjs/index.js"
    }
  }
}

Currently both are bundled together. Future versions may split:

• @vivekmind/sw-agent — browser-safe (no pg dependency)
• @vivekmind/sw-agent/server — Node.js runtime (includes pg)

AgentClient Methods

// Browser usage
const client = new AgentClient({
  relayUrl: 'wss://agent.schema-weaver.dev',
  agentId: 'agt_laptop_a1b2c3d4',
  token: 'swagt_...',
});

await client.connect();

// One-shot query
const result = await client.query('SELECT * FROM users LIMIT 10', {
  project: 'myapp',
  role: 'admin',
  userId: 'alice',
});

// Streaming query
for await (const chunk of client.streamQuery('SELECT * FROM big_table', ctx)) {
  console.log(`Chunk ${chunk.chunkIndex}: ${chunk.rows.length} rows`);
}

// Migration
await client.migrate(['CREATE TABLE foo (id serial PRIMARY KEY)'], ctx, {
  strategy: 'single_tx',
});

// Schema introspection
const schema = await client.introspect(ctx);

// Cancel in-flight query
await client.cancel('request_id_here', ctx);

// Plan registration (for auto_upgrade)
const planId = await client.registerPlan(['CREATE TABLE ...'], ctx);

// Manual approval response (browser-side)
await client.respondApproval({ request_id: '...', approved: true, approved_by: 'alice' });

Bundle Hygiene

Future: A build-time script (check-bundle.mjs) will grep for forbidden imports to ensure browser builds don't accidentally pull in pg:

// Forbidden in browser bundle
import { Pool } from 'pg';
import * as fs from 'fs';
import * as net from 'net';

12. Security Analysis

Threat Model

Credential Leak Paths

Replay Attacks

Each request includes:

• id: UUID v4, unique per request
• ts: Epoch milliseconds, validated within ±5 minutes

The relay rejects messages with duplicate or old ids. The agent validates ts is recent.

Man-in-the-Middle on the Relay

The relay sees:

• Agent ID and browser session ID
• Message timestamps and sizes
• Whether traffic is query/response or stream_chunk

The relay cannot:

• Decrypt message payloads (encrypted in transit via WSS)
• See SQL or results (terminated at agent)

What an Attacker with Browser Access Can Do

• Send queries permitted by their role + permission level
• See query results they request
• Request cancellation of their own in-flight queries
• Spoof intent field (caught by agent's re-classification)

Cannot:

• Escalate role (enforced by relay from session)
• Bypass permission level (enforced by agent)
• Access other users' results (session-bound)
• Modify audit log (written only by agent)

13. Design Decisions We Rejected

14. What's Next

1. Cloud Relay Integration (Completed) — The cloud relay integration is fully operational. We implemented the Trust-On-First-Use (TOFU) auto-registration model, which automatically registers new agents upon their first SSE connection, making manual linking obsolete.
2. Browser IDE Integration — Schema Weaver frontend needs to consume AgentClient for query execution, schema visualization, and migration workflow.
3. Migration Engine — Beyond execution, implement:
   • Schema differ (compute drift between snapshot and target)
   • Planner (generate safe migration SQL)
   • Risk assessor (classify statements as low/medium/high risk)
   • History manager (track applied migrations)
4. PII Column-Level Redaction — Agent-side redaction of sensitive columns (SSN, email, etc.) based on column tags.
5. SIEM Integration — Implement CloudAuditWriter to stream audit events to Splunk, Datadog, AWS CloudTrail.
6. Role-Based Result Filtering — viewer role might see fewer rows or redacted columns vs admin.

Install and Try

npm i @vivekmind/sw-agent

Open-source On GitHub:

https://github.com/Schema-Weaver/sw-agent.git

If you're building a browser-based tool that needs to talk to PostgreSQL without credential sharing, this is the layer. The architecture above is what ships in the npm package — not a future plan, not a roadmap. It's live.

Further Reading

• npm Package: @vivekmind/sw-agent
• PostgreSQL Advisory Locks Documentation
• PostgreSQL information_schema Views
• pg_cancel_backend Function
• Node.js pg Library
• WebSocket RFC 6455
• Server-Sent Events Specification

Previous in series: Part 5 — SSE Streaming Architecture
